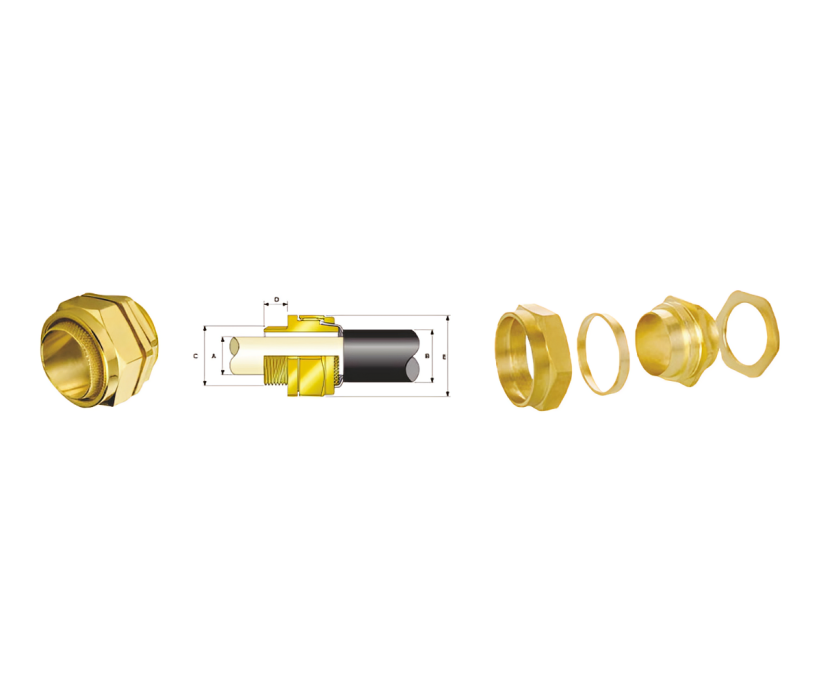

| Gland Size | Metric Entry Thread C | Minimum Thread Length D | Under Armour Dia A | Overall Dia B | Armour Wire Dia | Across Corners Dia E Max |
|---|---|---|---|---|---|---|
| 16 | 16 | 10 | 6.0 | 13.2 | 0.9 | 24.4 |
| 20S | 20 | 10 | 11.6 | 15.8 | 0.9/1.25 | 26.0 |
| 20L | 20 | 10 | 13.9 | 21.0 | 0.9/1.25 | 27.6 |
| 25S | 25 | 10 | 17.8 | 23.8 | 1.25/1.60 | 34.3 |
| 25L | 25 | 10 | 19.9 | 27.2 | 1.25/1.60 | 38.1 |
| 32 | 32 | 10 | 26.2 | 33.5 | 1.60/2.0 | 50.2 |
| 40S | 40 | 10 | 29.4 | 38.5 | 1.60/2.0 | 45.4 |
| 40L | 40 | 15 | 32.1 | 39.9 | 1.60/2.0 | 53.8 |
| 50S | 50 | 15 | 38.1 | 46.3 | 2.0/2.25 | 64.8 |
| 50L | 50 | 15 | 44.0 | 52.6 | 2.0/2.5 | 69.8 |
| 63S | 63 | 15 | 50.0 | 59.0 | 2.5 | 78.2 |
| 63L | 63 | 15 | 55.98 | 65.3 | 2.5 | 84.6 |
| 75S | 75 | 15 | 61.9 | 71.6 | 2.5 | 95.0 |
| 75L | 75 | 15 | 67.9 | 78.0 | 2.5 | 101.0 |
| 90 | 90 | 15 | 79.3 | 90.4 | 3.15 | 115.9 |
