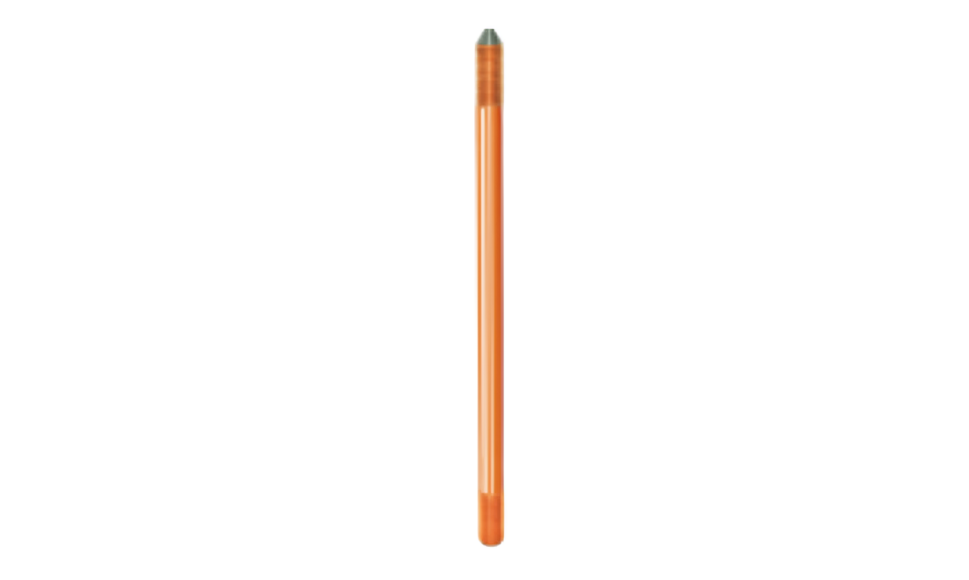

Earth Rods Earth rods are commonly utilized as the principle earth electrode in the design and installation of an earthing system. Global offers a selection of copper bonded steel, solid copper and stainless steel earth rods which are manufactured to meet International Standards.

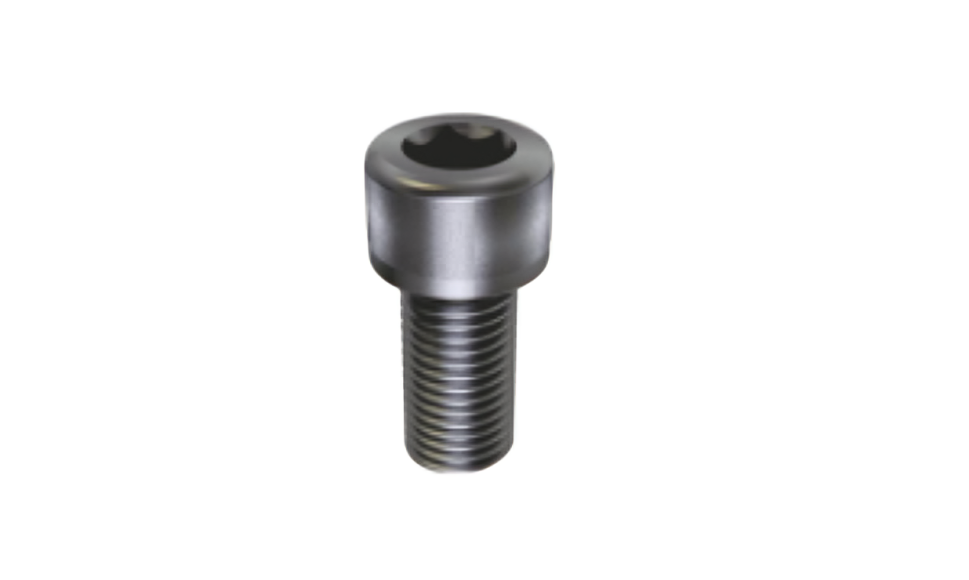

High Strength Driving Studs for Repeated use with power hammers.

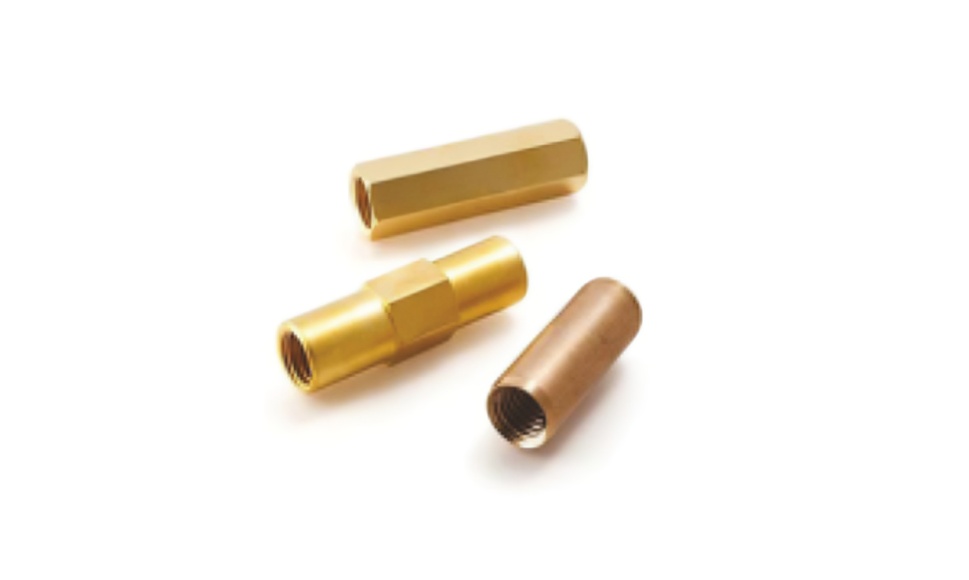

Fitting for Threaded & Unthreaded Earth Rods

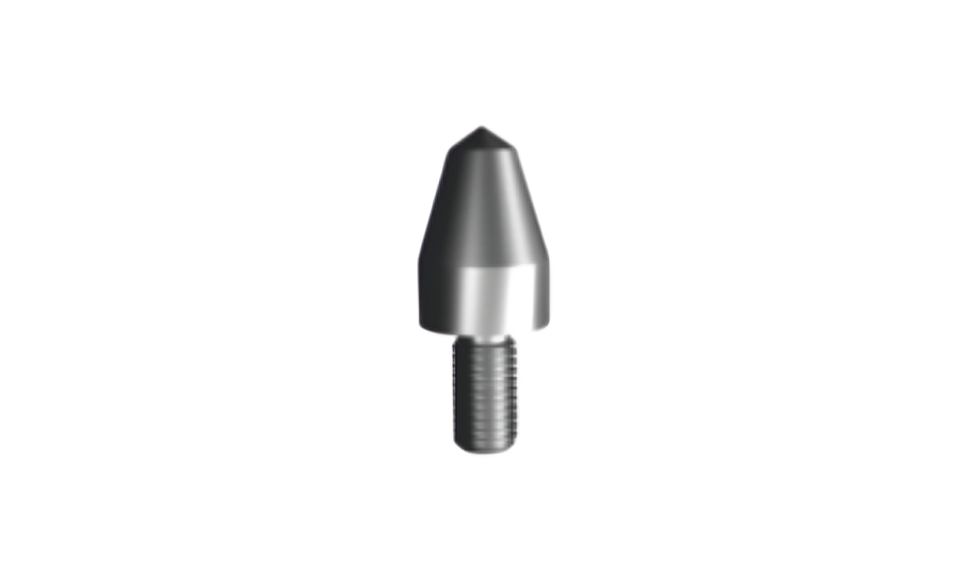

Driving Spikes for use with our copperbond Earth Rods. They enable rods to be driven into hard/compacted ground with ease and are internally threaded for screwing directly onto the Earth Rod.

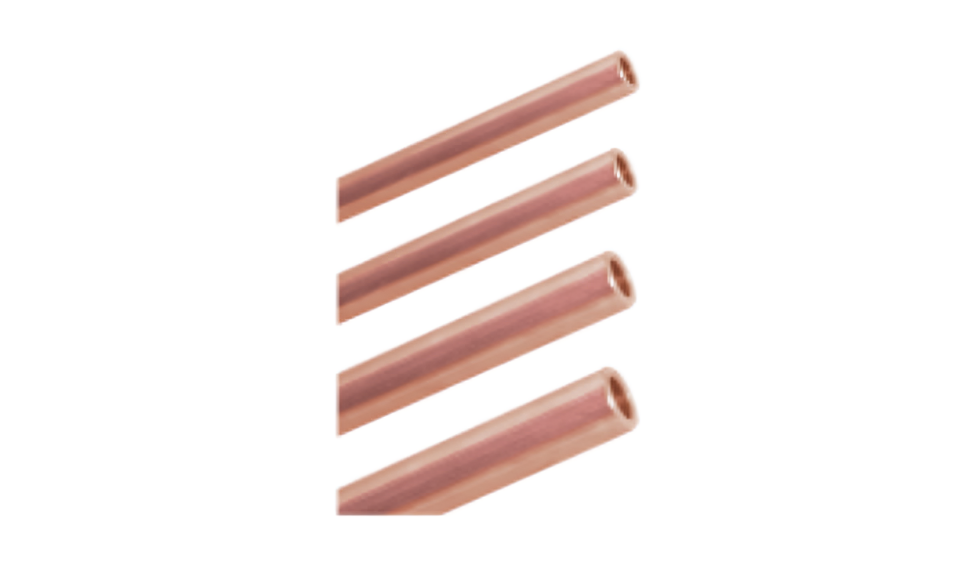

Solid Copper Earth Rods Global range of solid copper earth rods are manufactured from hard drawn copper and are best installed in highly corrosive conditions such as soils containing excessive salt content. All solid copper rods manufactured by Global are supplied with an external thread.

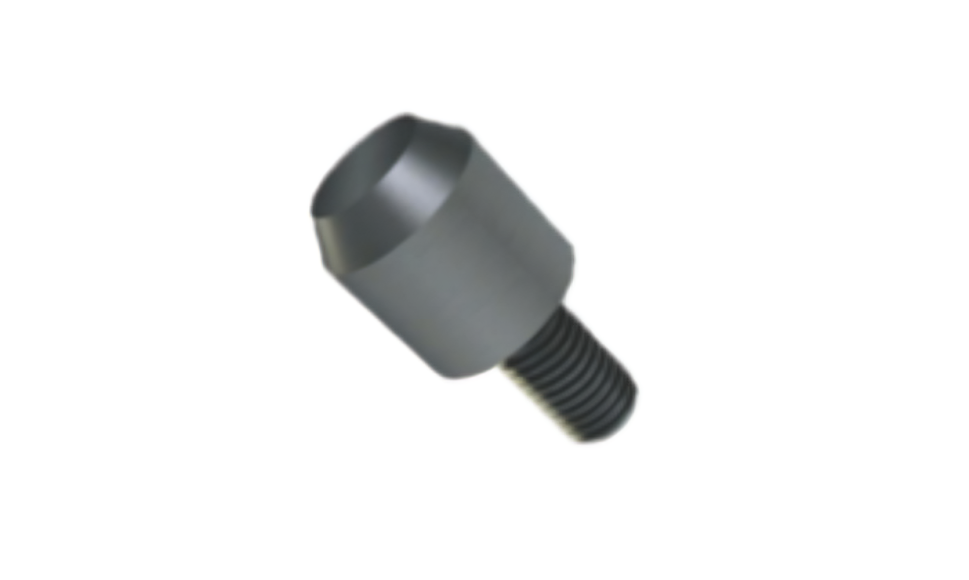

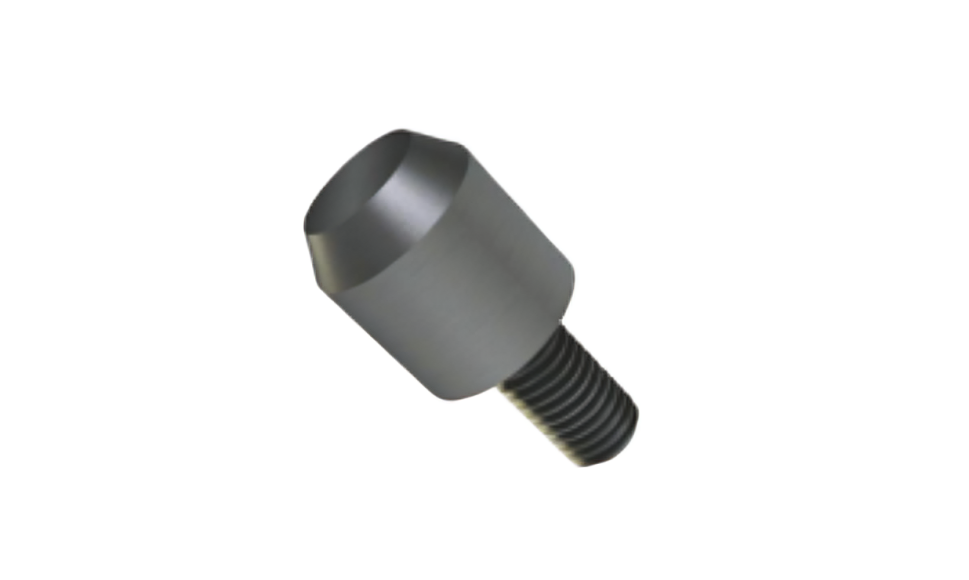

Driving head made from high tensile steel are designed for driving threaded copper bonded rods by hand tools or power hammer. These reusable studs are flxed on the top of the rod with the help of the coupler.

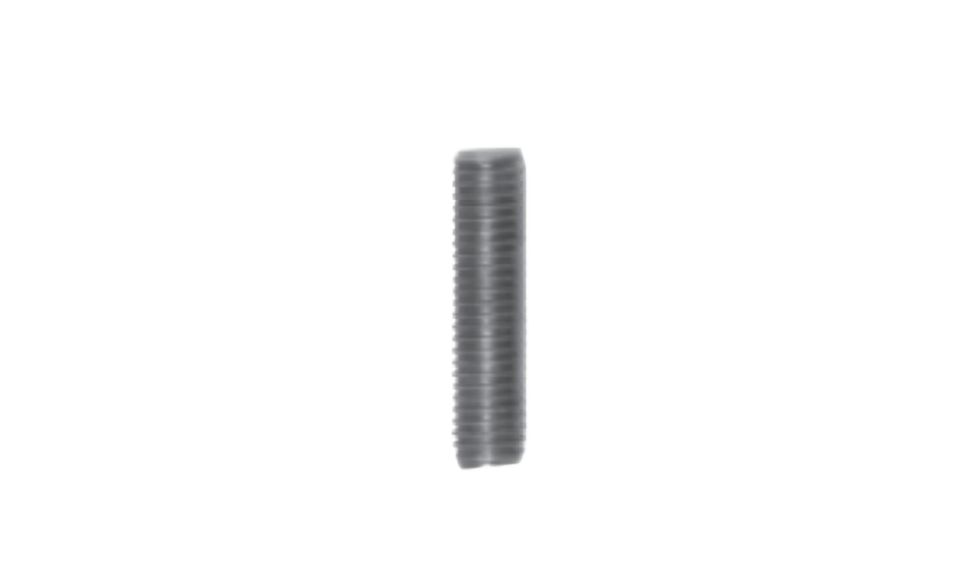

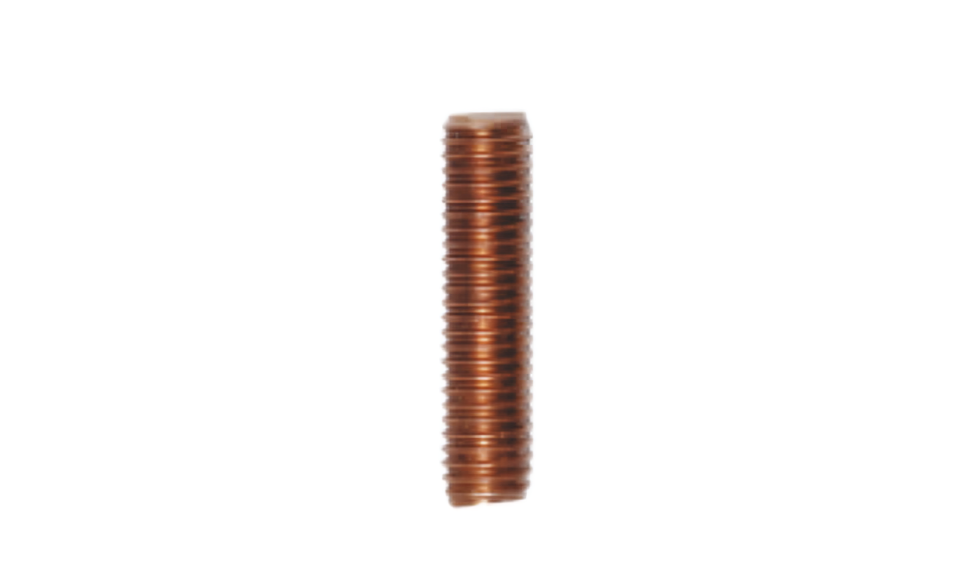

Coupling Dowels are used to join solid copper Earth Rods

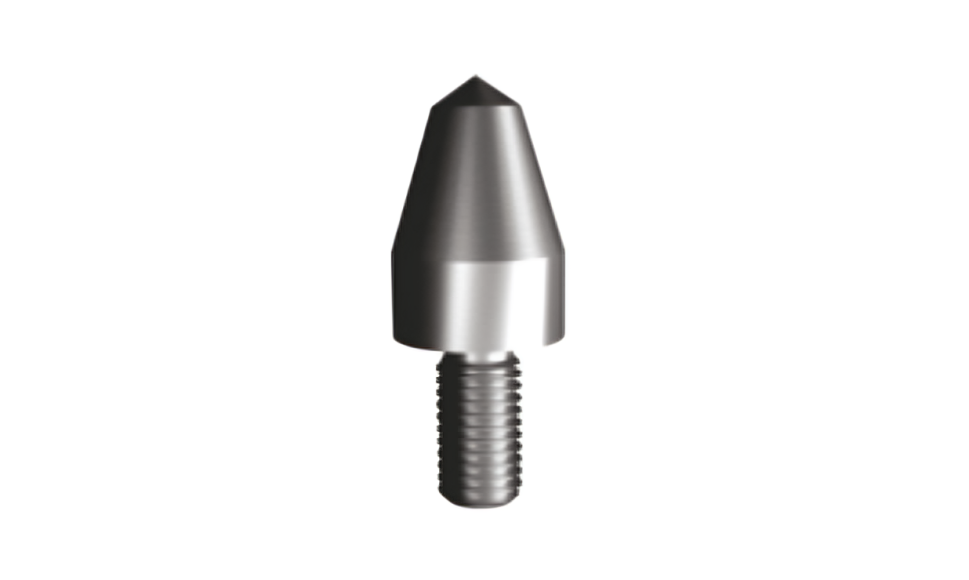

Driving Spikes enable the solid copper Earth Rod to be driven into the ground easily while protecting the end of the rod from damage.

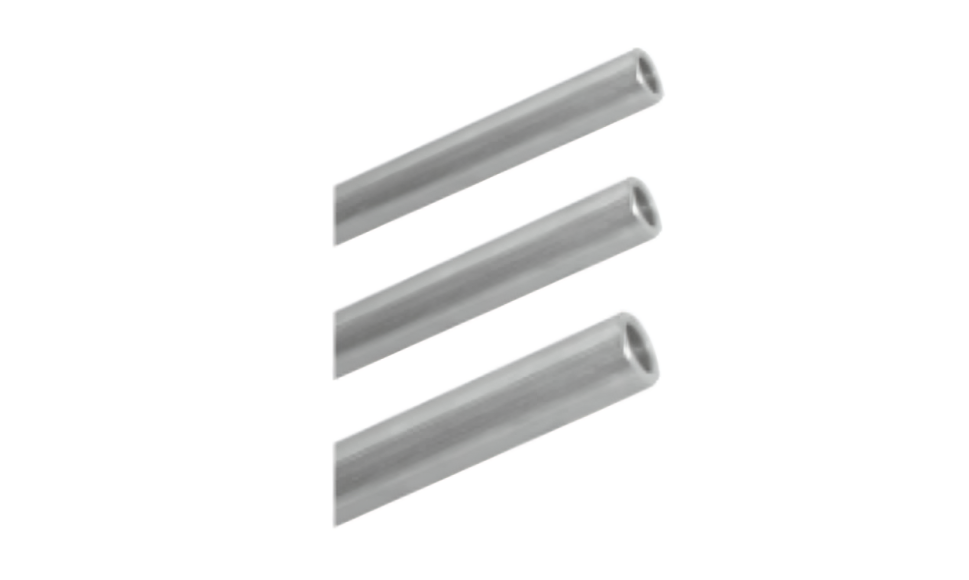

Stainless Steel rods are used to overcome galvanic corrosion which can be caused by dissimilar metals or components having different electronegativity buried on adjacent sides.

Driving Heads are designed to protect both the internal thread and the top of the Stainless Steel Rod while the rods are being driven into the ground

Coupling Dowels are used to join stainless steel Earth Rods

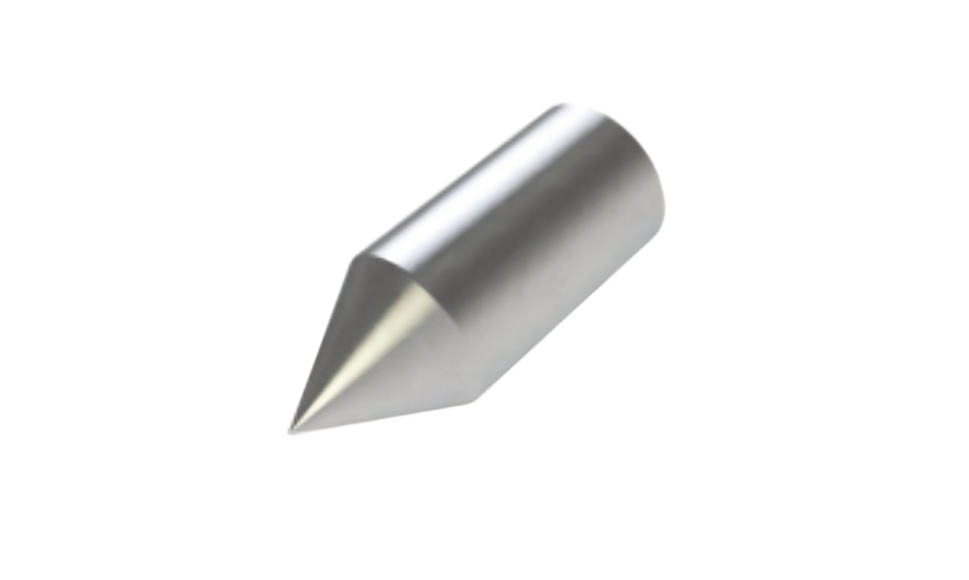

Driving Spikes enable the solid copper Earth Rod to be driven into the ground easily while protecting the end of the rod from damage.

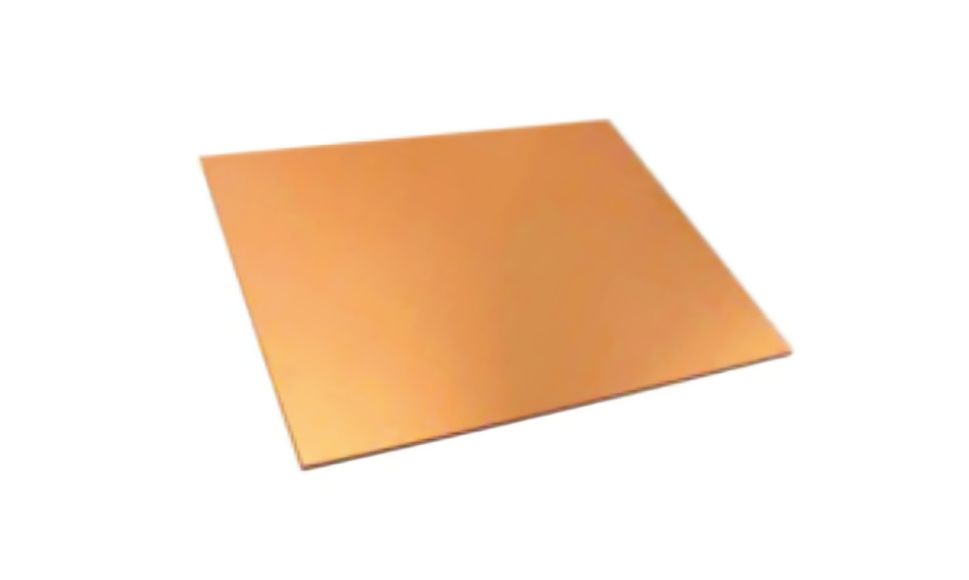

Solid Copper plate provide a long lasting earthing solution in place where diving earth rods might be impractical. Earth plates are made up of electrolytic grade solid copper sheet.

Stainless Steel

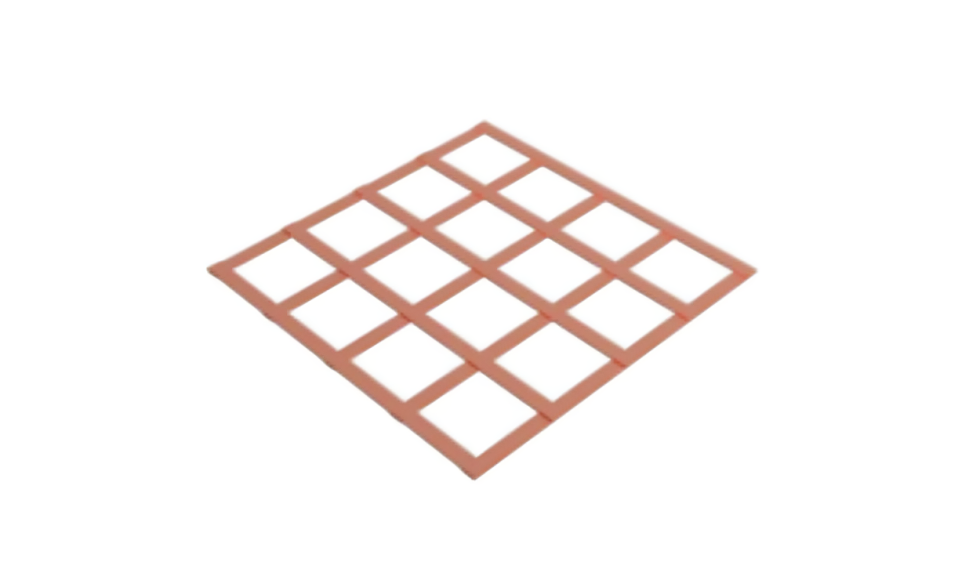

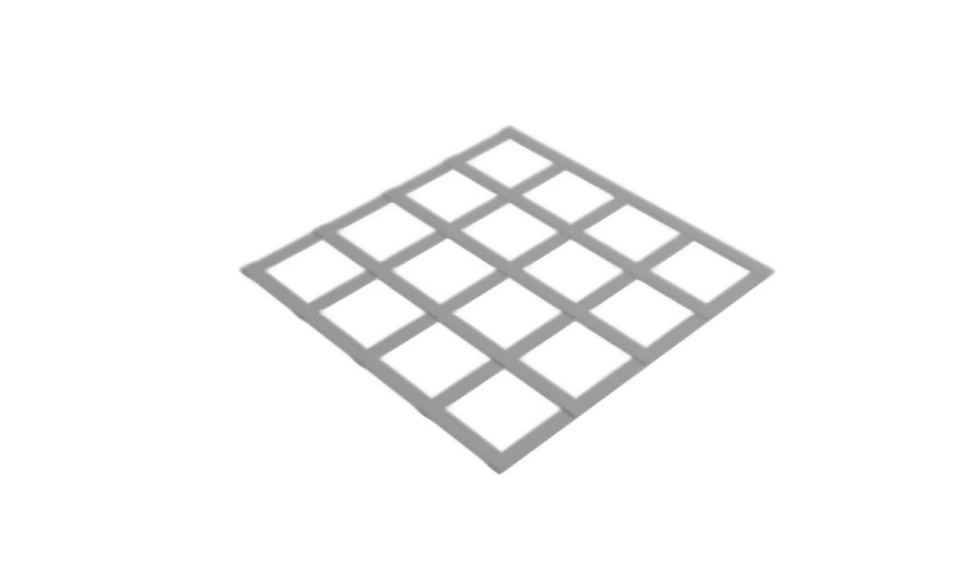

Solid Copper Lattice Mats offer a more economical cost option to installing solid copper plates.

Stainless Steel Lattice Mats, Manufactured from Stainless Steel 316 Grade, are used in areas where high corrosive environment is present.

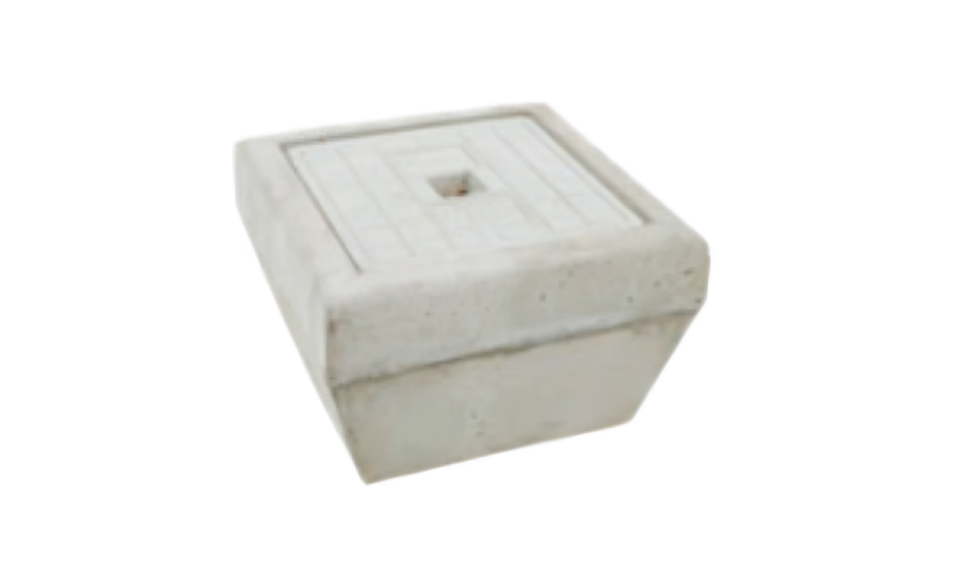

Concrete Inspection Pits are suitable for load rating 4,500kg and are suitable for most types of Earthing and Lightning Protection installations. the concrete Inspection pit protects the earth rod connection and make it available for inspection. The Concrete Inspection Pit can have an Earth Bar fltted diagonally in slot provided for multiple conductor connections.

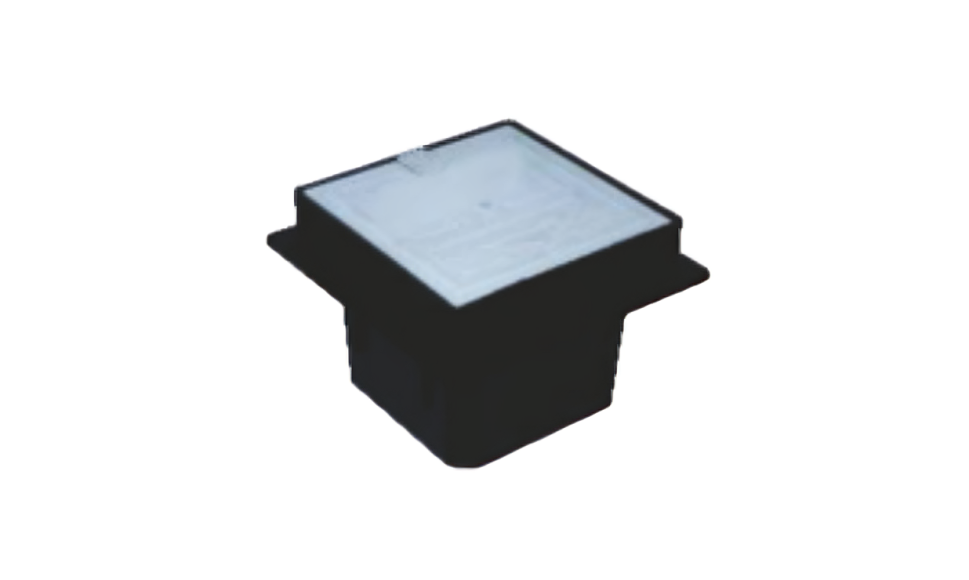

Earth housing pit is manufactured from heavy high-grade polypropylene for high strength & stress levels to absorb a maximum load of 5000ks. The light weight feature allow easy handling, storage and transportation, thus increasing installation efciency. Termination area is increased by 100% due to simple locking of two units together, allowing deeper electrode connections to be made and reducing the effects from harmful voltage gradients.

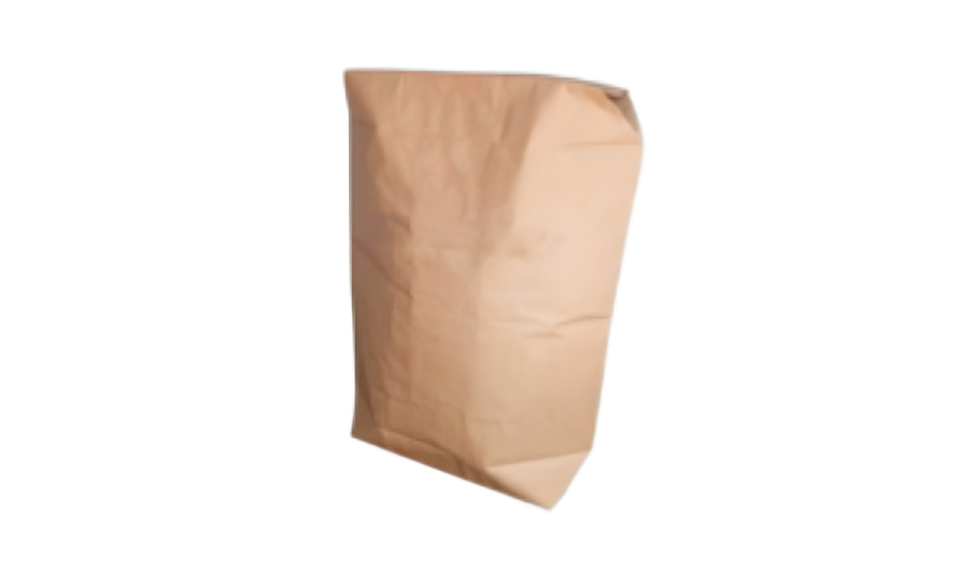

Bentonite is used as a backll to reduce soil resistivity. When mixed with water, it swells to several times its dry volume. This moisture content can be retained for a considerable time and future moisture can be absorbed during rainfall etc. Bentonite can be supplied in either powder or granular form. Approximately 18 x 25kg bags create a volume of 10hm

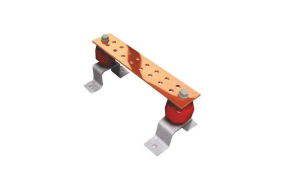

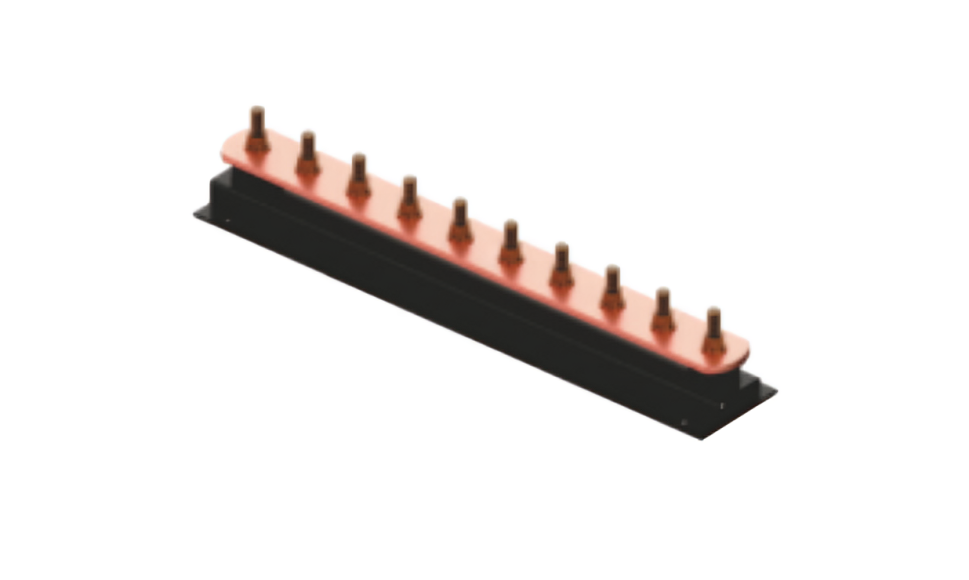

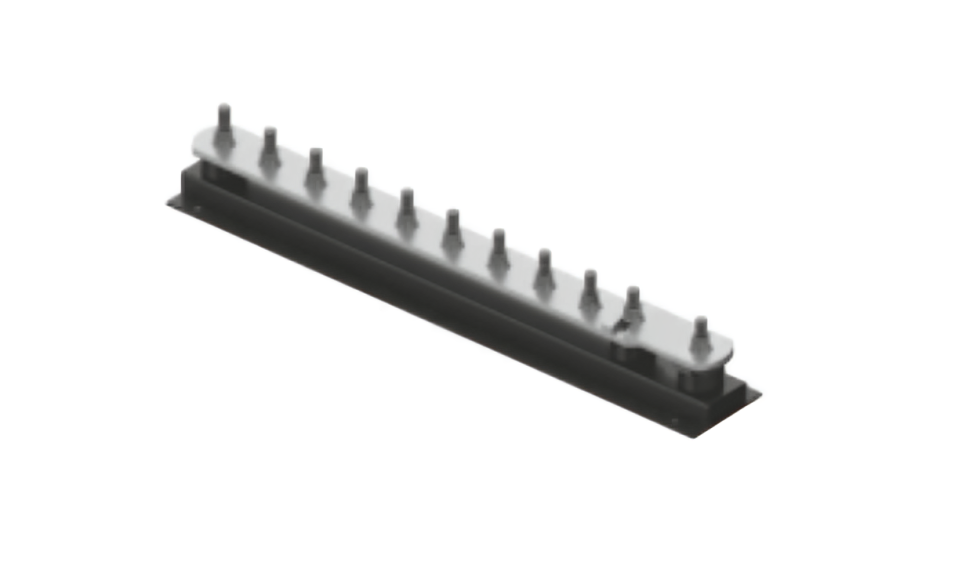

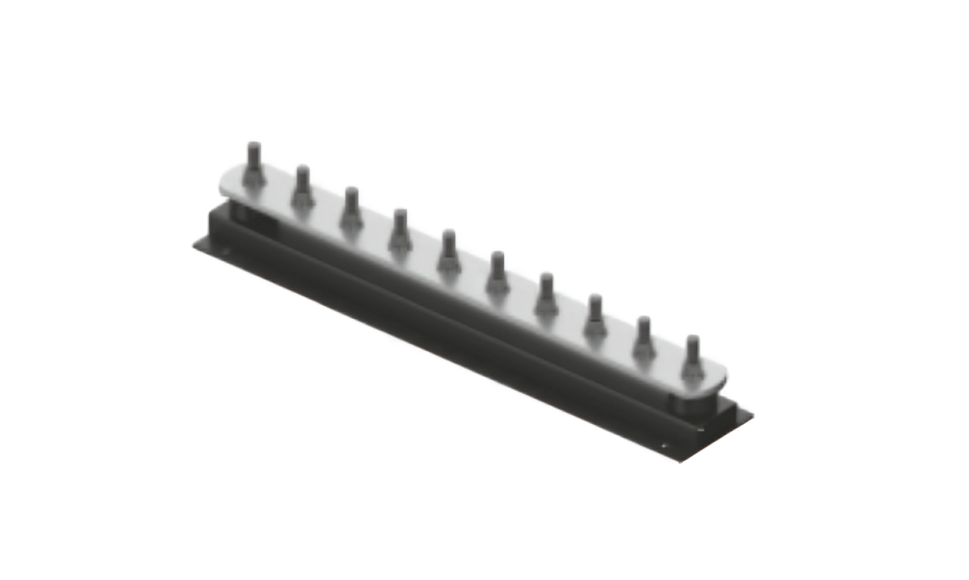

Earth bars provides a convenient common earthing point for electrical installations. Our standard earth bars are manufactured from 50mm x 6mm hard drawn copper bar and come complete with M10 ttings & insulators. The pvc base makes our earth bars lighter & easier to handle as well as being entirely corrosion proof

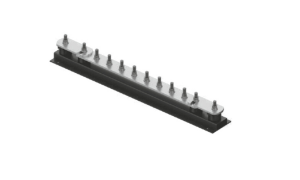

Tinned earth bars have been used on a variety of high-prole projects, this is partly due to the fact that our tinned earth bars offer excellent resistance to water corrosion, and subsequently provide enhanced conductivity

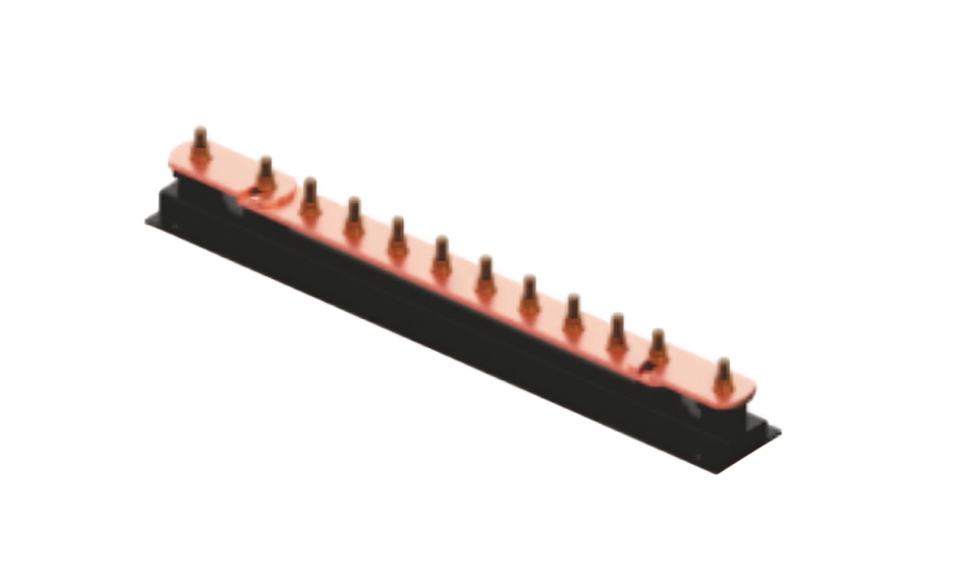

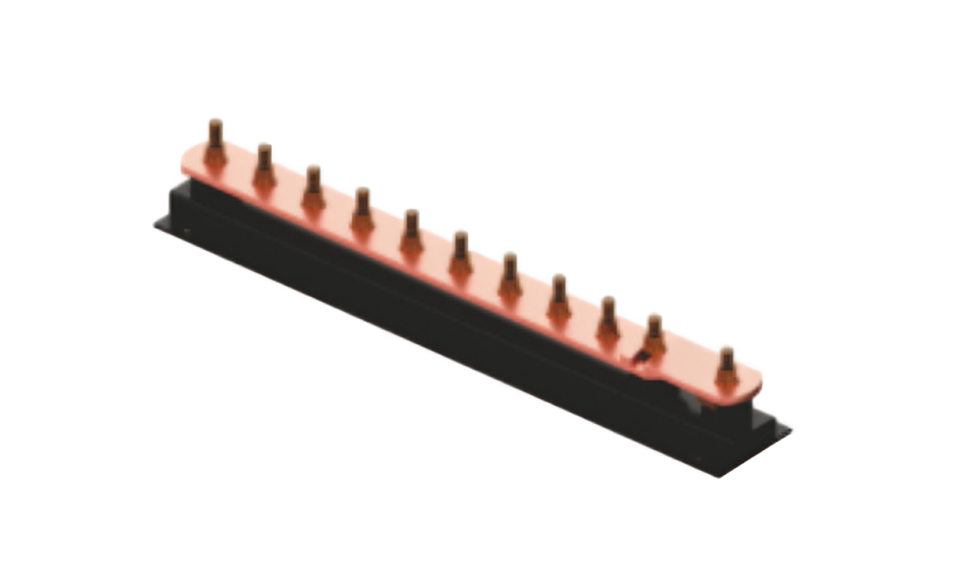

Single disconnecting link earth bars are mainly used to offer a temporary break in the connection to the earth, allowing the inspection & testing of multiple earth rods / systems while disconnected from the lightening and earth system

Single disconnecting link tinned earth bars are mainly used to offer a temporary break in the connection to the earth, allowing the inspection and testing of multiple earth rods / system while disconnected from the lightening and earth system

Double Disconnecting link earth bars are mainly used to offer a temporary break in the connection to the earth, allowing the inspection and testing of multiple earth rods / systems while disconnected from the lightning & earth system.

Double Disconnecting link earth bars are mainly used to offer a temporary break in the connection to the earth, allowing the inspection and testing of multiple earth rods / systems while disconnected from the lightning & earth system.

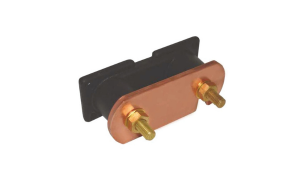

The disconnecting link provides a temporary break in the earth connection to allow inspection and testing of the earth electrode.

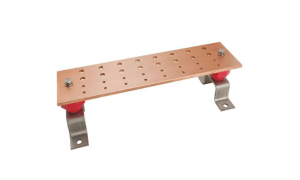

Telecommunication earth bar provides a common grounding point within the telecommunication room and its typically located on walls within a data room

This item provides a common grounding point within the telecommunicationsroom. Typically located on walls within a data room

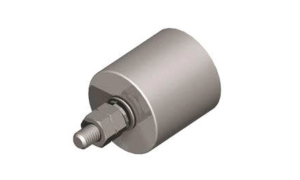

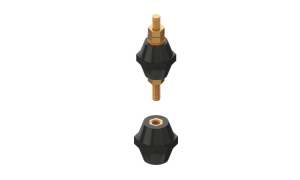

Insulators are supplied with or without studs & locking nuts.

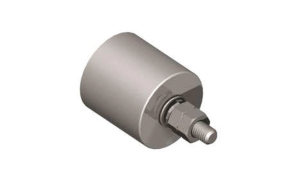

Earth bosses are used for equipotential bonding which is the process of connecting different metal parts of structures together in such ways that they are at the same electrical potential

Earth bosses are used for equipotential bonding which is the process of connecting different metal parts of structures together in such ways that they are at the same electrical potential.

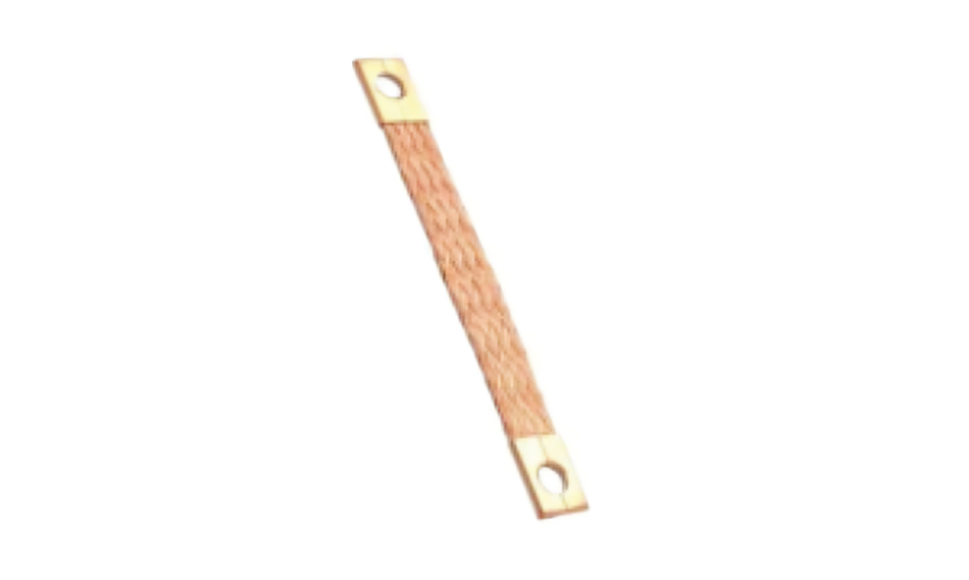

Flexible Copper Braids are used for continuous current grounding and bonding application for equipotential bonding
