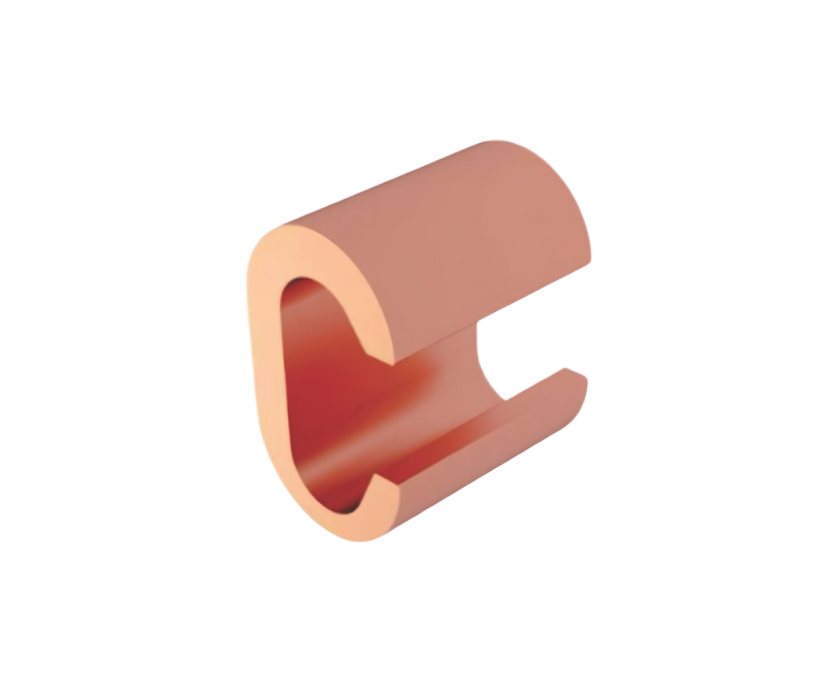

C Crimp Connector

These range taking ‘c’ Crimp Connector are specially designed for tap & parallel connections of standard copper cables in earthing applications

Main Conductor A mm2	Main Conductor B mm2	L mm	W mm	H mm
10	4 - 10	13	12	9
10 - 16	10 - 16	19	17	12
16	4	19	17	12
16 - 25	15 - 10	20	12	13
25	10 - 16	21	19	12
25	10 - 25	24	20	15
35	15 - 16	24	20	15
35	25 - 35	27	20	15
50	4 - 16	27	20	15
50	16 - 50	27	20	17
70	15 - 25	27	20	17
50 - 70	4 - 35	33	28	21
50 - 70	35 - 70	34	28	21
70 - 95	35 - 70	41	30	26
95	4 - 35	41	30	26
70 - 95	95	41	30	26
120	35 - 120	45	30	28
150	6 - 70	45	30	28
150	95 - 150	45	30	28
120 - 185	95 - 185	54	35	33
150 - 185	70 - 150	54	35	33
240	10 - 70	54	35	34
240	95 - 120	54	37	34
240	150 - 240	54	40	43

Material :Copper
