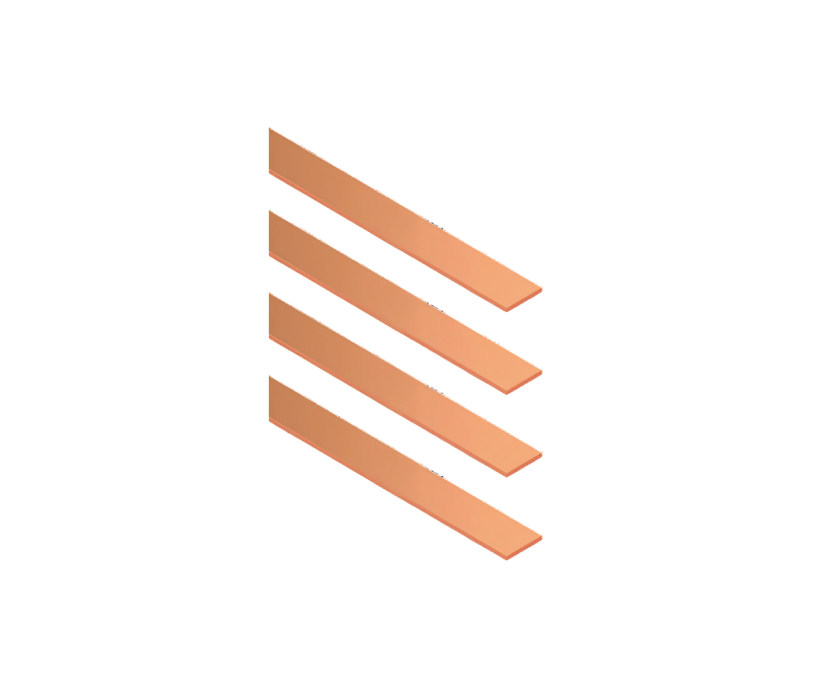

High conductivity bare copper tape is used on both lightening protection & earthing applications. It is annealed for ease of use & has radius edges
| Size W x H mm | C.S.A. mm2 | Standard Coil Size m |
|---|---|---|
| 12.5 x 15 | 18.75 | 100 |
| 12.5 x 3 | 37.5 | 100 |
| 20 x 15 | 30 | 100 |
| 20 x 3 | 60 | 100 |
| 20 x 4 | 80 | 70 |
| 20 x 5 | 100 | 60 |
| 25 x 15 | 37.5 | 100 |
| 25 x 2 | 50 | 50 |
| 25 x 2.5 | 62.5 | 90 |
| 25 x 3 | 75 | 25 & 50 |
| 25 x 4 | 100 | 50 |
| 25 x 5 | 125 | 40 |
| 25 x 6 | 150 | 40 |
| 30 x 2 | 60 | 50 |
| 30 x 3 | 90 | 50 |
| 30 x 3.5 | 105 | 50 |
| 30 x 4 | 120 | 40 |
| 30 x 5 | 150 | 40 |
| 30 x 10 | 300 | 20 |
| 31 x 3 | 93 | 50 |
| 31.5 x 1.8 | 56.7 | 100 |
| 31.5 x 4 | 126 | 40 |
| 31 x 6 | 186 | 30 |
| 32 x 6 | 192 | 30 |
| 35 x 6 | 210 | 25 |
| 38 x 3 | 114 | 50 |
| 38 x 5 | 190 | 30 |
| 38 x 6 | 228 | 25 |
| 40 x 3 | 120 | 40 |
| 40 x 4 | 160 | 30 |
| 40 x 5 | 200 | 25 |
| 40 x 6 | 240 | 25 |
| 40 x 6.3 | 252 | 25 |
| 40 x 8 | 320 | 20 |
| 50 x 3 | 150 | 40 |
| 50 x 4 | 200 | 30 |
| 50 x 5 | 250 | 20 |
| 50 x 6 | 300 | 10 & 20 |
| 50 x 6.3 | 315 | 20 |
| 50 x 7 | 350 | 20 |
| 50 x 8 | 400 | 20 |
| 50 x 10 | 500 | 10 |
| 50 x 12 | 600 | 10 |
| 60 x 5 | 300 | 20 |
| 60 x 6 | 360 | 15 |
| 60 x 8 | 480 | 12 |
| 63 x 10 | 630 | 10 |
| 65 x 6 | 390 | 15 |
| 70 x 6 | 420 | 15 |
| 75 x 6 | 450 | 7 |
| 75 x 12 | 900 | 8 |
| 80 x 6 | 480 | 12 |
