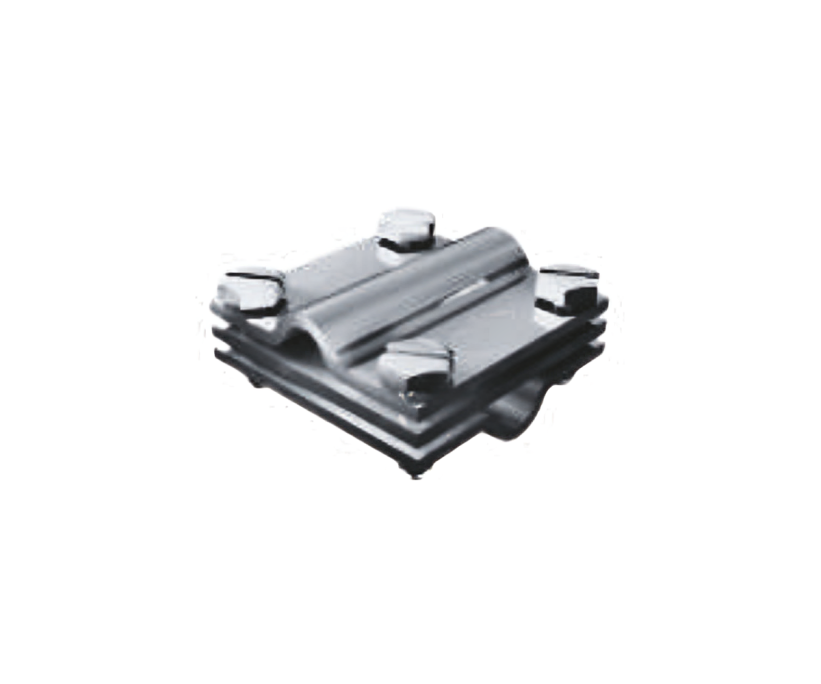

Type - 1 with Intermediate Plate
Suitable Connect Rod to Rod Conductor
| Dimension LxWxB | Rod Size (mm) | Tape Size (mm) |
|---|---|---|
| 50 x 50 x 3 | 8 to 10 | 30 X 3 |
| 50 x 50 x 4 | 8 to 10 | 40 X 3 |
Type - 2 without Intermediate Plate
Suitable Connect Rod to Flat Conductor
| Dimension LxWxB | Rod Size (mm) | Tape Size (mm) |
|---|---|---|
| 50 x 50 x 3 | 8 to 10 | 30 X 3 |
| 50 x 50 x 4 | 8 to 10 | 40 X 3 |
Type - 3 with Intermediate Plate
Suitable Connect Rod to Flat Conductor
| Dimension LxWxB | Rod Size (mm) | Tape Size (mm) |
|---|---|---|
| 50 x 50 x 3 | 8 to 10 | 30 X 3 |
| 50 x 50 x 4 | 8 to 10 | 40 X 3 |
| 50 x 50 x 3 | 8 to 10 | 30 X 6 |
| 50 x 50 x 4 | 8 to 10 | 40 X 6 |
Type - 4 without Intermediate Plate
Suitable Connect Rod to Flat Conductor
| Dimension LxWxB | Rod Size (mm) | Tape Size (mm) |
|---|---|---|
| 50 x 50 x 3 | 8 to 10 | 30 X 3 |
| 50 x 50 x 4 | 8 to 10 | 40 X 3 |
| 50 x 50 x 3 | 8 to 10 | 30 X 6 |
| 50 x 50 x 4 | 8 to 10 | 40 X 6 |
