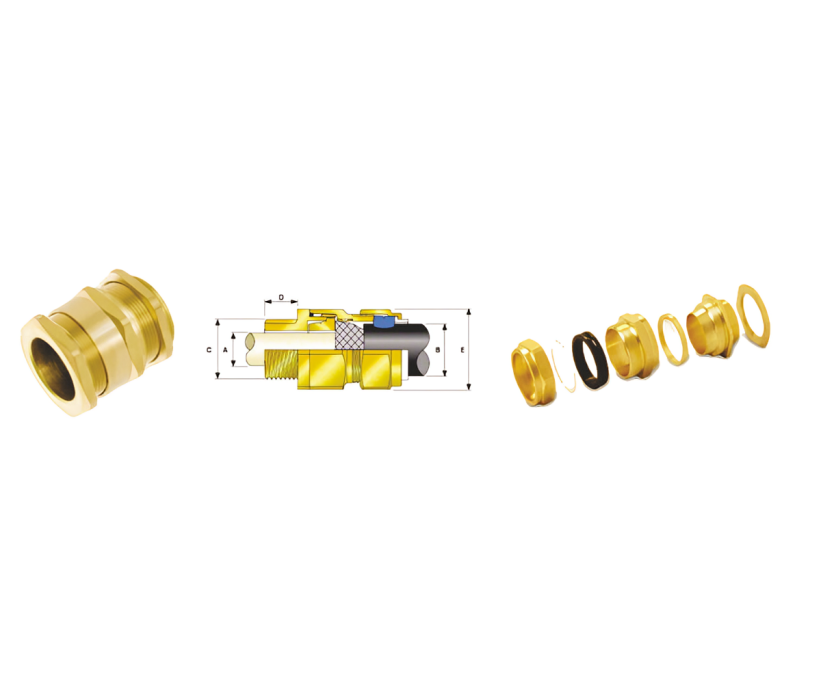

| Gland Size | Metric Entry Thread C | Minimum Thread Length D | Under Armour Dia A Max | Overall Dia B Max | Armour Wire Dia | Across Corners Dia E Max |
|---|---|---|---|---|---|---|
| 16 | 16 | 10 | 6.0 | 13.2 | 0.9 | 24.4 |
| 20SS | 20 | 15 | 8.6 | 13.2 | 0.9 | 24.4 |
| 20S | 20 | 15 | 11.6 | 15.8 | 0.9/1.25 | 26.5 |
| 20L | 20 | 15 | 13.9 | 20.8 | 0.9/1.25 | 30.8 |
| 25S | 25 | 15 | 15.5 | 25.8 | 0.9/1.25 | 37.0 |
| 25L | 25 | 15 | 19.9 | 27.2 | 0.9/1.25 | 38.1 |
| 32 | 32 | 15 | 26.2 | 33.5 | 1.60/2.0 | 48 |
| 40S | 40 | 15 | 29.4 | 38.5 | 1.60/2.0 | 55.6 |
| 40L | 40 | 15 | 32.1 | 39.9 | 1.60/2.0 | 57.7 |
| 50S | 50 | 15 | 40.8 | 51.0 | 2.0/2.25 | 58.6 |
| 50L | 50 | 15 | 44.0 | 52.6 | 2.0/2.25 | 71.3 |
| 63S | 63 | 15 | 50.6 | 58.9 | 2.5 | 81.3 |
| 63S | 63 | 15 | 50.6 | 58.9 | 2.5 | 81.3 |
| 63L | 63 | 15 | 55.9 | 65.3 | 2.5 | 88.4 |
| 75S | 75 | 15 | 61.9 | 71.6 | 2.5 | 97.4 |
| 75L | 75 | 15 | 67.9 | 78.0 | 2.5 | 108.0 |
| 90 | 90 | 20 | 74.0 | 88.0 | 3.15 | 116.9 |
