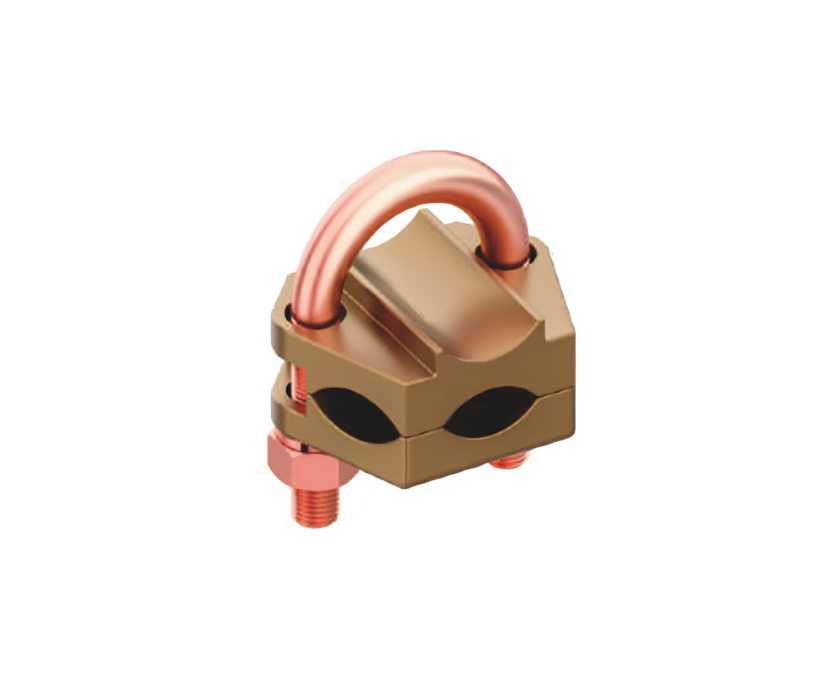

This versatile range of ‘U’ Bolt clamps can be used to connect at tapes
and standard cables to earth rods.
| Maximum Rod Ø mm |
Conductor Range mm2 | L mm | W mm | H mm |
|---|---|---|---|---|
| 16 | 16 - 150 | 57 | 52 | 40 |
| 16 | 150 - 300 | 69 | 70 | 40 |
| 20 | 16 - 70 | 57 | 52 | 40 |
| 20 | 70 - 300 | 69 | 70 | 40 |
| 25 | 16 - 70 | 75 | 87 | 55 |
| 25 | 185 - 300 | 89 | 70 | 55 |
