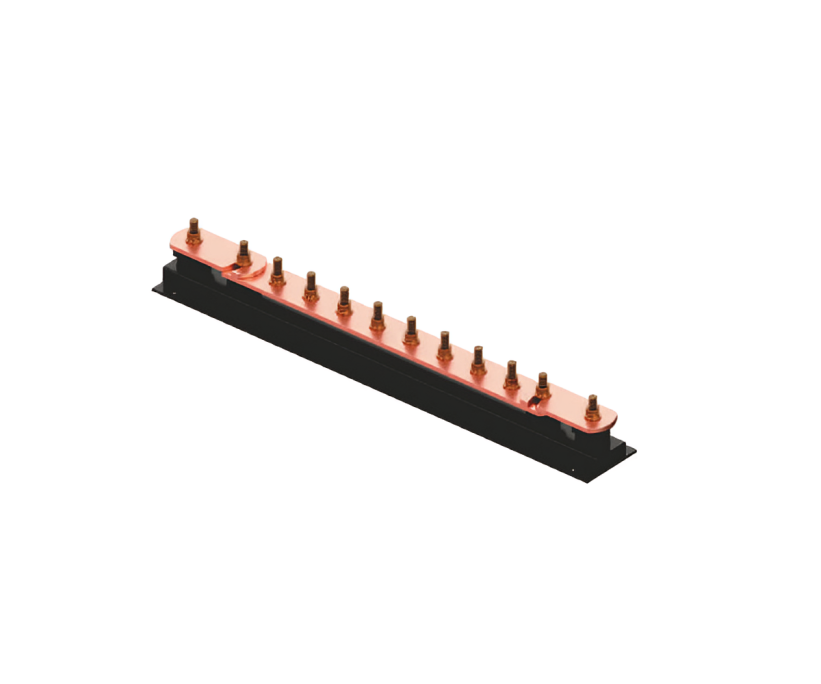

Double Disconnecting link earth bars are mainly used to offer a temporary break in the connection to the earth, allowing the inspection and testing of multiple earth rods / systems while disconnected from the lightning & earth system.
| No Terminations | L mm | W mm | H mm |
|---|---|---|---|
| 2 | 350 | 90 | 60 |
| 3 | 400 | 90 | 60 |
| 4 | 450 | 90 | 60 |
| 6 | 550 | 90 | 60 |
| 8 | 650 | 90 | 60 |
| 9 | 725 | 90 | 60 |
| 10 | 800 | 90 | 60 |
| 12 | 900 | 90 | 60 |
| 14 | 1000 | 90 | 60 |
| 16 | 1100 | 90 | 60 |
| 18 | 1250 | 90 | 60 |
| 20 | 1400 | 90 | 60 |
| 22 | 1450 | 90 | 60 |
| 24 | 1550 | 90 | 60 |
| 26 | 1700 | 90 | 60 |
| 28 | 1800 | 90 | 60 |
| 30 | 1950 | 90 | 60 |
