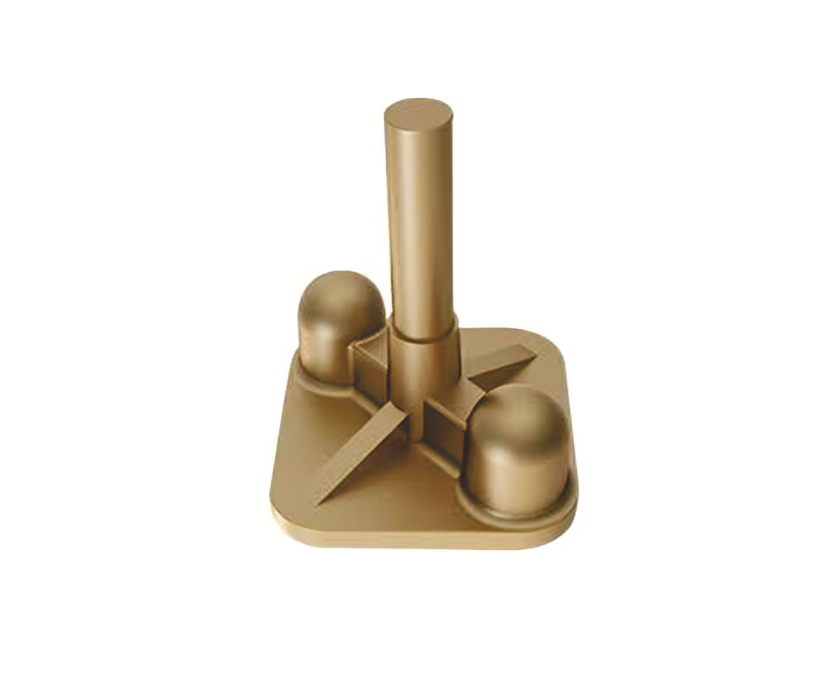

Earth Bonding Points are installed to provide a convient earth system connection point in concrete structures. When cast into concrete they connect the re-bar to the earthing or lightning production system.
| No. Hole | Hole Size mm | Plate Size mm | Stem Ø mm | L mm |
|---|---|---|---|---|
| 1 | M10 X 18 | 38 X 38 | 10.07 (70mm2) | 75 |
| 2 | M10 X 18 | 70 X 35 | 10.07 (70mm2) | 75 |
| 4 | M10 X 18 | 63 X 63 | 10.07 (70mm2) | 75 |
| 4 | M8 X 1.25 | 100 X 100 | 10.07 (70mm2) | 75 |
