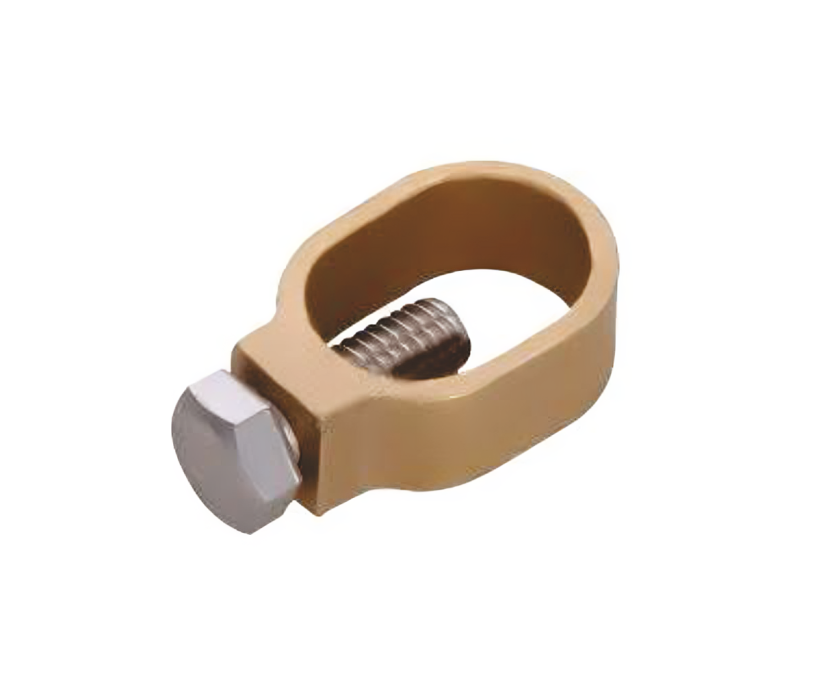

These Clamps are used for joining earth rods to different size of standard
copper conductor. The clamp have a high resistance to corrosion and are
mechanically strong to ensure a lasting connection.
Earth Rod Shank Ø mm |
Max. Cable Size mm | L mm | W mm | H mm |
---|---|---|---|---|
14.2 | 16 - 20 | 30 | 20 | 15 |
14.2 | 16 - 95 | 36 | 28 | 18 |
16.0 | 16 - 150 | 41 | 26 | 20 |
17.2 | 25 - 150 | 36 | 28 | 18 |
17.2 | 30 - 70 | 41 | 26 | 20 |
20 | 35 - 150 | 48 | 30 | 18 |
