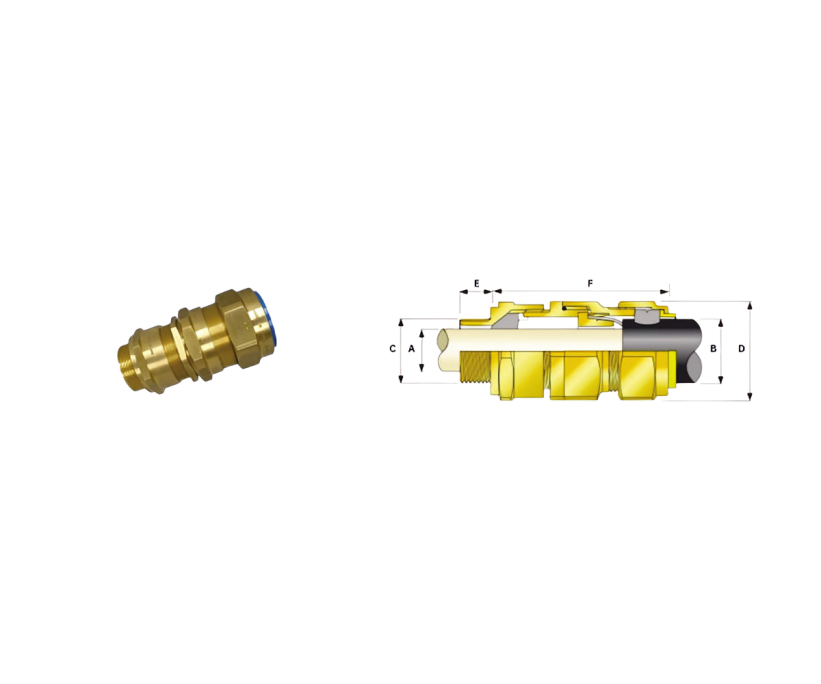

| Gland Size | Metric Entry Thread C | Minimum Thread Length D | Under Armour Dia A Min | Under Armour Dia A Max | Overall Dia B Min | Overall Dia B Max | Armour Wire Dia | Across Corners Dia E Max |
|---|---|---|---|---|---|---|---|---|
| 16 | 16 | 15 | 6.3 | 8.6 | 8.0 | 13.2 | 0.9 | 13.2 |
| 20SS | 20 | 15 | 6.3 | 8.6 | 8.0 | 13.2 | 0.9 | 26.5 |
| 20S | 20 | 15 | 7.8 | 11.6 | 8.8 | 16.6 | 0.9/1.25 | 26.5 |
| 20L | 20 | 15 | 11.8 | 14.4 | 11.7 | 21.0 | 0.9/1.25 | 30.8 |
| 25S | 25 | 15 | 13.0 | 16.5 | 17.0 | 26.5 | 1.25/1.60 | 37.0 |
| 25L | 25 | 15 | 14.0 | 20.6 | 17.0 | 27.4 | 1.25/1.60 | 38.1 |
| 32 | 32 | 15 | 19.7 | 26.4 | 23.5 | 33.9 | 1.60/ | 48.0 |
| 40L | 40 | 15 | 26.5 | 32.3 | 29.0 | 41.7 | 1.60/2.0 | 55.6 |
| 50S | 50 | 15 | 32.2 | 38.1 | 38.0 | 46.0 | 2.0/2.25 | 58.6 |
| 50L | 50 | 15 | 38.4 | 44.2 | 39.5 | 52.9 | 2.0/2.25 | 71.3 |
| 63S | 63 | 15 | 44.1 | 50 | 50 | 58.9 | 2.5 | 81.3 |
| 63L | 63 | 15 | 50.1 | 55.9 | 51.3 | 65.3 | 2.5 | 88.4 |
| 75S | 75 | 15 | 56.0 | 61.9 | 62.0 | 71.6 | 2.5 | 97.8 |
| 75L | 75 | 15 | 62.0 | 67.9 | 62.5 | 78.0 | 2.5 | 108.0 |
| 90 | 90 | 20 | 68.0 | 74.0 | 68.0 | 88.0 | 3.15 | 116.9 |
