Designed to join a range of tape size in a straight through position. In many applications the clamp enables tapes to be overlapped and secured by the two set of screws.

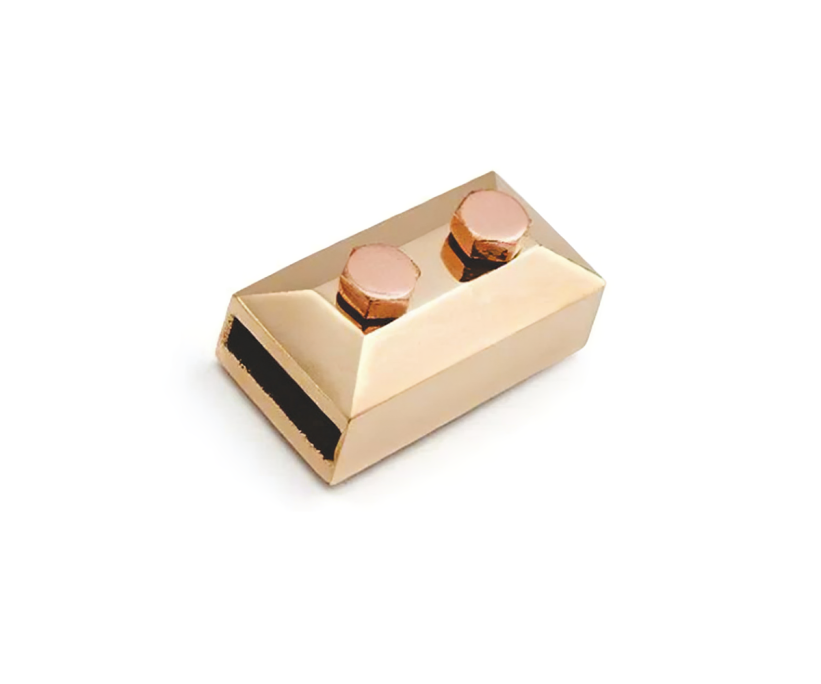

For use with Bar Copper Tapes
| Main Conductor Size mm | L mm | W mm | H mm |
|---|---|---|---|
| 25 X 3 | 60 | 51 | 24 |
| 25 X 6 | 70 | 45 | 30 |
| 50 X 3 | 90 | 63 | 26 |

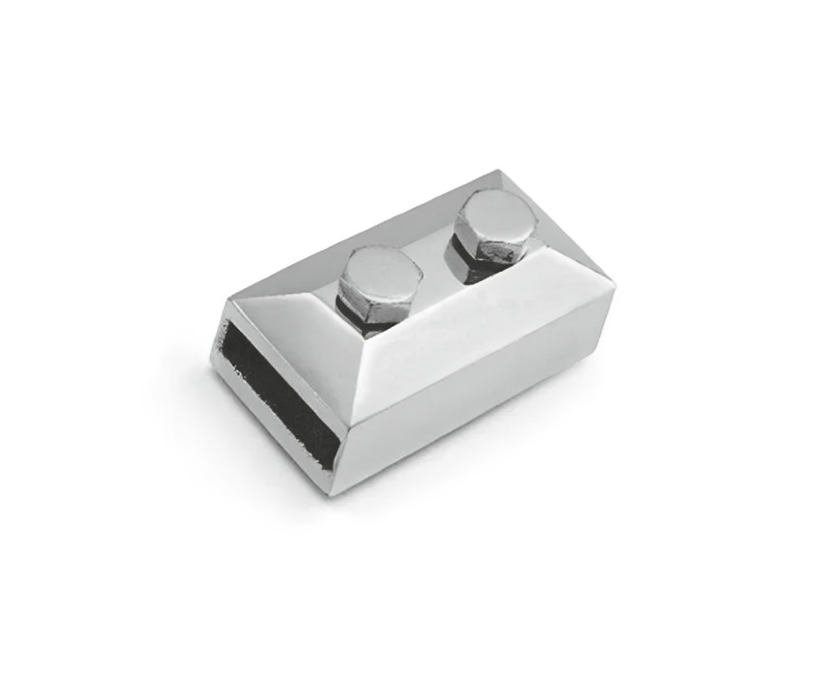

For use with Bare Aluminium Tapes
| Main Conductor Size mm | L mm | W mm | H mm |
|---|---|---|---|
| 25 X 3 | 68 | 40 | 23 |
