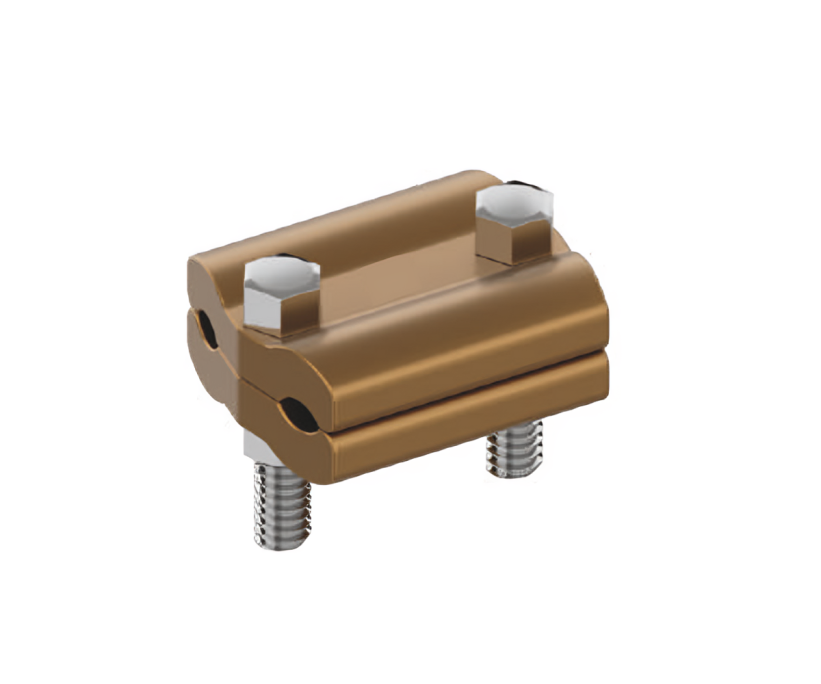

Parallel Groove Clamps designed to connect two conductors in parallel and especially used to hold transmission conductors.
| Conductor Range mm2 | L mm | W mm | H mm | Set Screw |
|---|---|---|---|---|
| 25 - 70 | 50 | 40 | 7 | M8 X 36mm |
| 70 - 95 | 54 | 45 | 8.5 | M10 X 45mm |
| 95 - 185 | 65 | 57 | 12.5 | M10 X 55mm |
| 185 - 240 | 78 | 71 | 14 | M10 X 55mm |
| 240 - 300 | 94 | 85 | 16 | M10 X 60mm |
