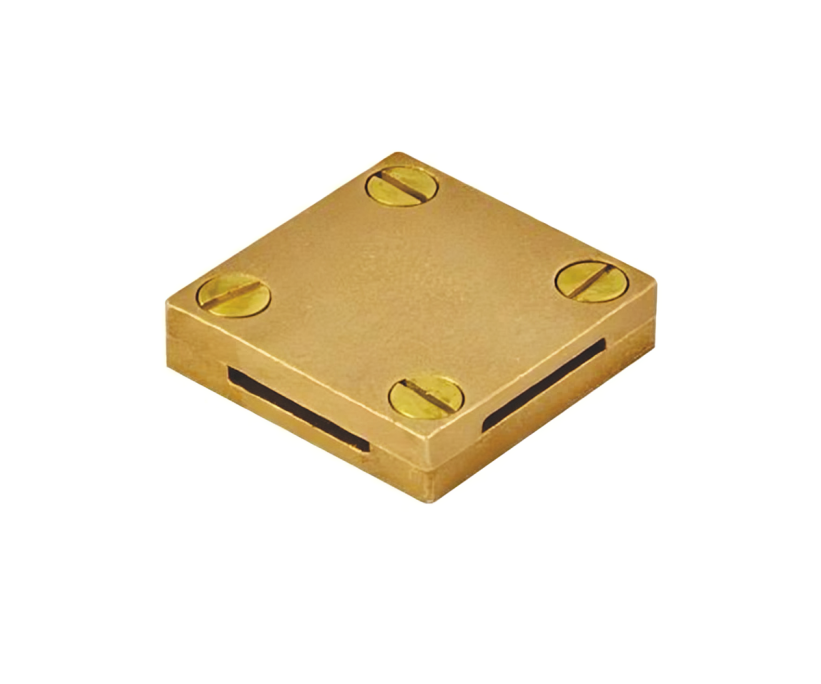

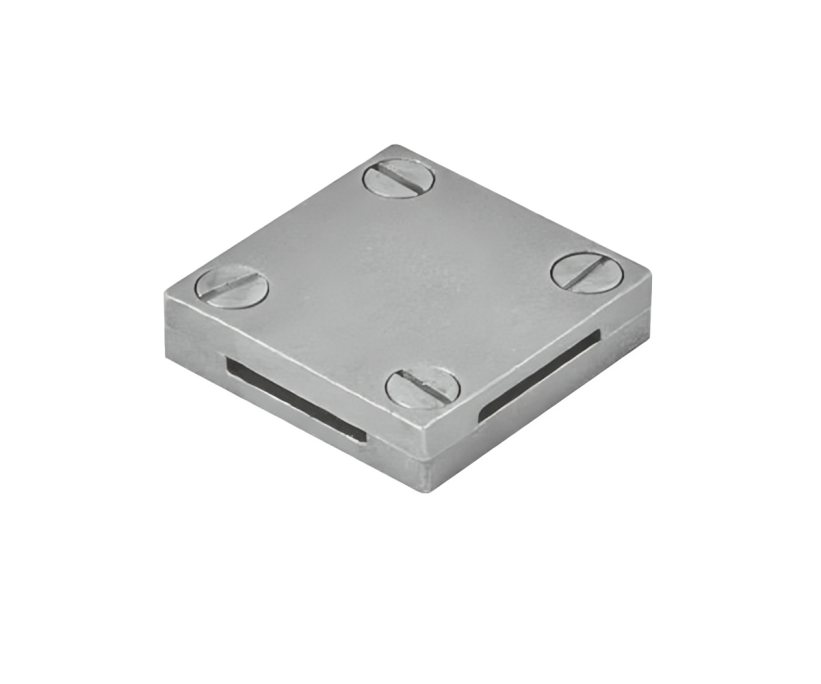

Global Square tap clamps are manufactured from high quality alloys of either copper or aluminium providing an effective law resistance connection between overlaping tapes
| Conductor Size mm | L mm | W mm | H mm |
|---|---|---|---|
| 25 X 3 | 50 | 50 | 13 |
| 25 X 4 | 50 | 50 | 15 |
| 25 X 6 | 50 | 50 | 20 |
| 30 X 2 | 56 | 56 | 12 |
| 30 X 5 | 56 | 56 | 17 |
| 31 X 3 | 60 | 60 | 14 |
| 31 X 6 | 56 | 56 | 19 |
| 31 X 4 | 56 | 21 | 11 |
| 38 X 6 | 71 | 71 | 22 |
| 40 X 3 | 66 | 66 | 13 |
| 40 X 4 | 66 | 66 | 15 |
| 40 X 5 | 66 | 66 | 18 |
| 50 X 3 | 80 | 80 | 18 |
| 50 X 6 | 80 | 80 | 22 |
| 50 X 8 | 80 | 80 | 27 |
